    D3E 130A Bldc Motor Controller En1175 control on lightweight material handling machines

    Ask Lasest Price
    Brand Name : DALA
    Model Number : D3E
    Price : Negotiable
    Delivery Time : 7 - 15 working Days
    Payment Terms : L/C,T/T,etc.
    • Product Details
    • Company Profile

    D3E 130A Bldc Motor Controller En1175 control on lightweight material handling machines

    24V 130A brushed motor controller D3E for Brushed DC Motor (Bi-Di)

    Product Description:

    D3E is a brushed DC motor controller designed for the use of traction drive control on lightweight material handling machines such as forklift, trucks and many other kinds of industrial vehicles.
    With its advanced software design, the functions of D3E is programmable and highly parameterized, which provides customers with flexible and easy application and maintenance of the product.

    Features:

    Functional integrity

    1. Rating voltage/output at 24V/130A
    2. 2 micro-processors structure.
    3. Built-in relay component (rating 24V/70A).
    4. M5 power input and motor output binding posts adopted.
    5. Comply to international standard EN13849-1(Cat2,PL=D) and certified
    6. Support both CAN and UART communication ports.

    Robust Safety and Reliability

    1. Supervisory control for traction
    2. Interlock Braking
    3. Emergency Reverse
    4. Safety Brake
    5. Speed Limit
    6. Dangerous Load monitor.

    Specifications

    ContentParameters
    ModelD3E
    CertificationEN1175-2020
    Nominal Input Voltage24
    20s output Current Rating (A)130A
    2 Min output Current Rating (A)70A
    60 Min output Current Rating (A)45A
    CommunicationSerial / CAN
    Operating Temperature-30℃~55℃
    Storage Temperature-40℃~85℃
    IP RatingIP65
    Motor TypeBrushed DC Motor (Bi-Di)

    Applications

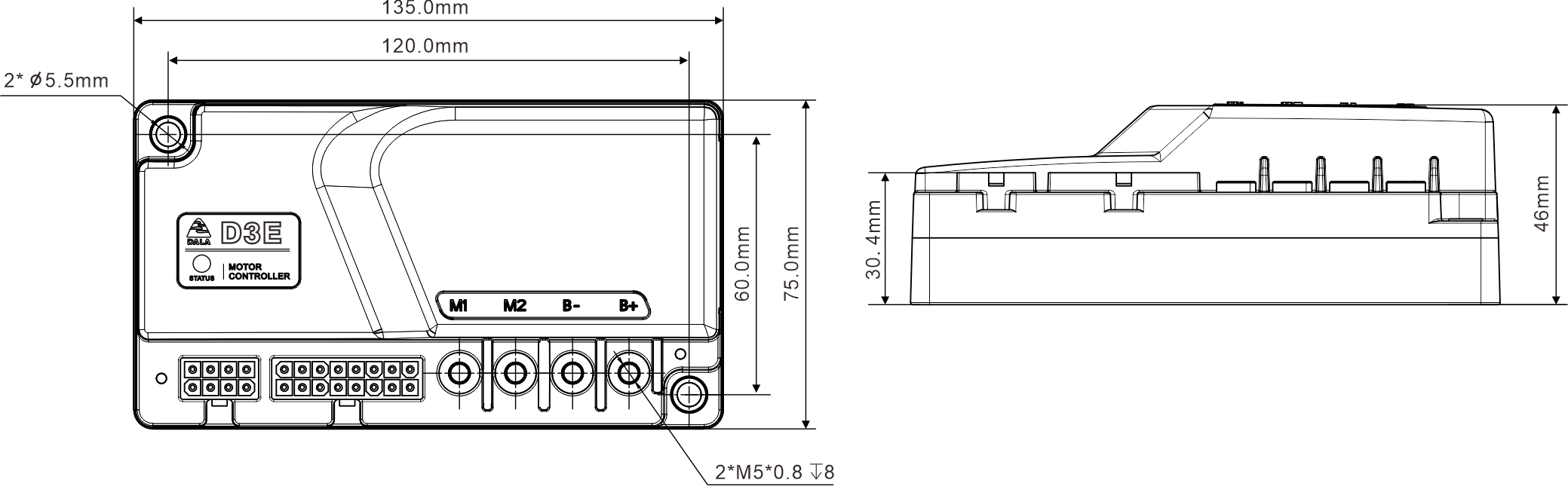

    Dimensions
