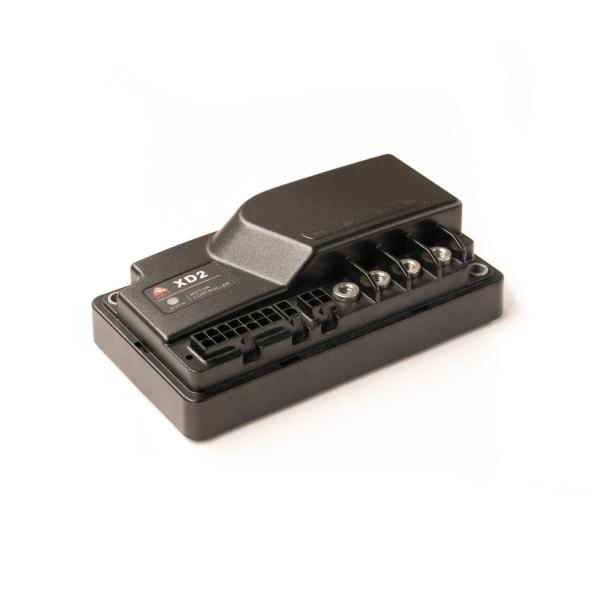

XD2 24V 70A DC Motor Controller Control 2 Motors Simultaneously(Brush,Vacuum)

Product Description:

Features:

Perfect Functionality

1. Supports up to two DC brushed motors for brush and vacuum.
2. Supports 7 input switches and 2 NPN outputs, while compatible with potentiometer and Hall effect sensors.
3. Supports connection to the IoT via CAN bus to fulfill the rental business of scrubbers and remote monitoring.
4. Features of practical benefits for customer: motor soft start, brush pressure adjustment, water flow regulation, runtime statistics, fault detection, and other functions.

1. High-power MOS transistors is utilized for raising the level of security.
2. Superior sealing and thermal design ensure stable and safe status even in extreme conditions.
3. Equipped with comprehensive fault detection functions, such as over-voltage, under-voltage, over-current, over-temperature, reverse connection prevention…etc.
4. Short-circuit protection, open-circuit protection with innovative design and technologies.

Simple & Flexible

1. Supports serial/CAN interface upgrade programs, and can provide customized software development according to specific customer requirements.
2. Powerful PC Windows programming tools making system debugging, software upgrade and fault diagnostic very simple and easy.

Specifications :

Applications:

Dimensions:

Founded in 2012 by the keymembers of the University of Electronics Science and Technology of China and ABU ROBOCON champion team, DALA Technology Co., Ltd. is a high-tech company that specializes in providing customers with high-end drive technology and motor drive products.
Our main products cover AC/PMSM/IPM motor controllers, DC Brush motor controllers, DC brushless motor controllers, and all-in-one motor controllers.
