Product Description:

Features:

1. Diverse models available with 200A/250A/320A output under voltages 24V/36V/48V.
2. Designed under EN 13849-1:2015 standard and certified.
3. Supports both Serial and CAN communication.
4. Supports rich kinds of peripheral connections:

• Seven small power outputs with maximum current up to 3A;
• Two throttle inputs;
• Eight digital inputs;
• One 0-10V analog voltage output;
• One isolated pulse output.

5. Supports various encoder types optionally:

• A/B incremental encoder;
• A/B/I absolute encoder;
• Sin/cos encode;
• Rotary Variable Differential Transformer.

6. Supports FOC control of ACIM/IPM(PMSM)/BLDC motors.
7. Supports ACIM motor parameter recognition and IPMSM/BLDCM motor position encoder zero calibration.
8. Supports three-loop control of position, speed (including speed loop control for pumps), and torque.
9. The unique variable load condition speed robust control and low-speed smoothing control technology provide customers with excellent vehicle control experiences.

Safety and Reliability

1. The dual-processor architecture based on functional safety standards can assure the highest possible level of functional safety performance.
2. Fail-safe power supply component by using isolated transformer.
3. Over-voltage cutback, thermal cutback, short-circuit protection and other safety features ensure the safety of controller outputs.
4. Rugged sealed housing and connectors meet IP65 environmental sealing standards for use in harsh environments.

Specifications :

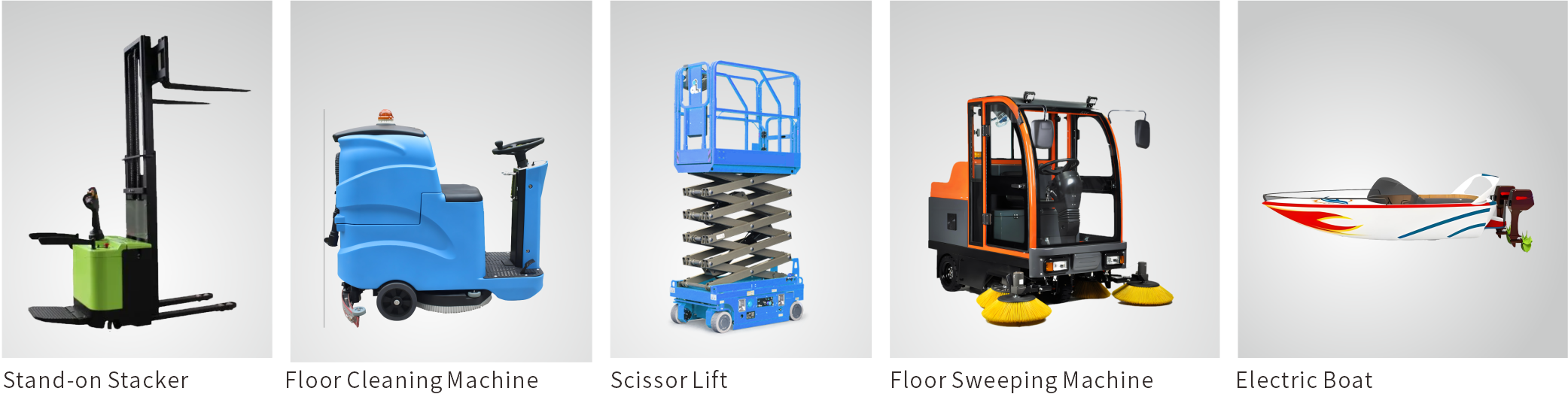

Typical Applications:

Dimensions:
